Introduction:
YX-1400/1700/1900 automatic paper sheeter machine apply the advanced technique of Germany and England, the machine computer control system apply Inovance Servo motor and AC transducer which are both international of Top brand. The conveyer belts apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland .the electrical system adopts SCHNEIDER & OMRON, it leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient by operation. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry.
Specifications:
| Model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness of cutting paper | 60-550GSM |
| Max. scroll diameter | 1800mm(71")Max |
| Max. paper-cutting width | 1900mm |
| Cutting length Range | 450-1450mm |
| The format of slitting | 2/4/6 sheets |
| Cutting precision | The cutting length 1000mm is: ±0.5mmThe cutting length>1000mm is:±0.1% |
| Max. cutting speed | 350cuts/min |
| Max. cutting meter speed | 300m/min |
| Paper piling height | 1300mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V 50Hz |
| G.W. | 1700KGS |
Sketch Map:

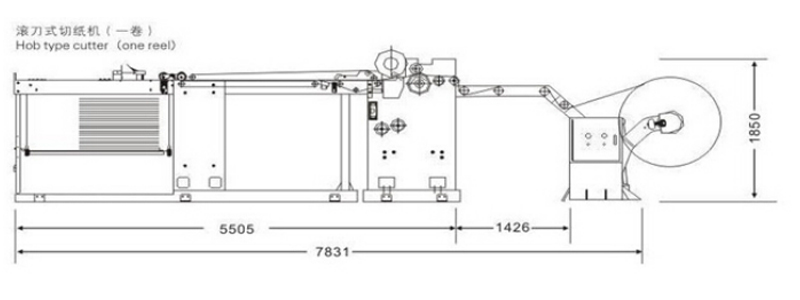

paper sheeter machine with 1 reel

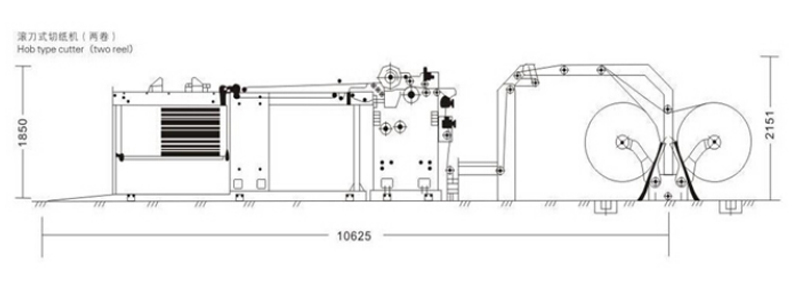

paper sheeter machine with 2 reel

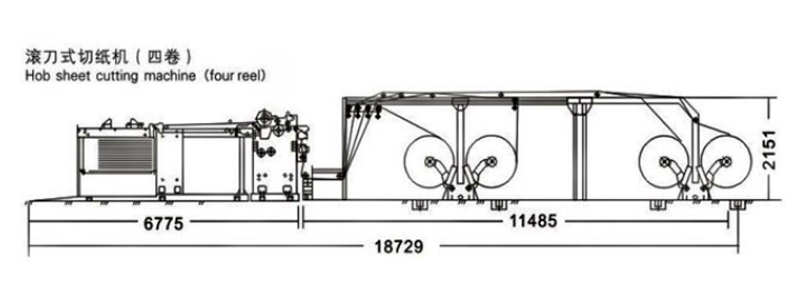

paper sheeter machine with 4 reel

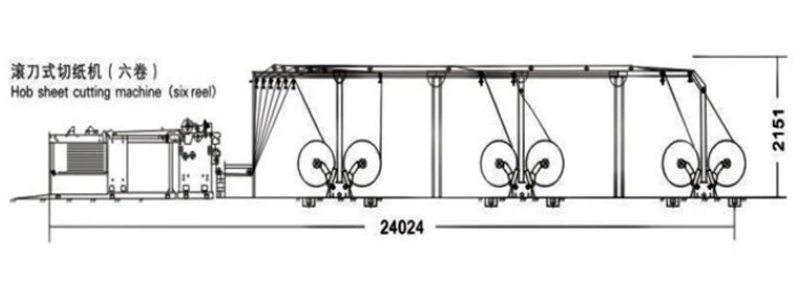

Paper roll to sheet cutter with 6 reel
